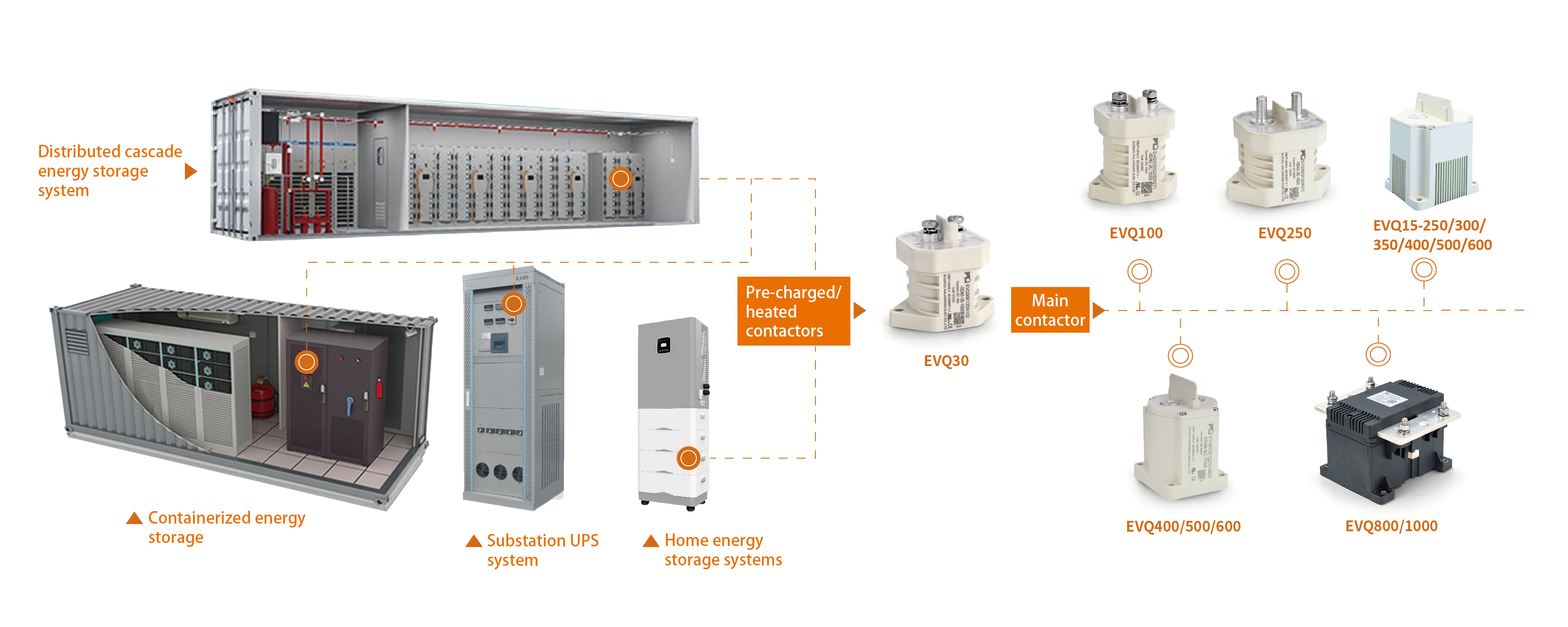

ESS energy storage system analysis
Typical control circuit diagram of ESS energy storage system

Rated working voltage meets 1500VDC

Main contact has high ability to prevent short circuit

Low temperature rise for main contact

Main contact with non-polarity and feedback contact

Epoxy resin encapsulation, the contact chamber is filled with protective gas, combined with magnetic blowing arc extinguishing, so that the product can carry high current and high voltage

Sealed structure, low working noise

Horizontal and vertical installation, no special requirements for installation location

Comply with national standard GB/T14048.4, IEC60947

Compliant with EU RoHS Directive (2002/95/EC)

APPLICATION FIELD

Container energy storage; distributed cascade energy storage system; home energy storage system; substation UPS system.

Machine name: Container type energy storage system
Subsystem name: BMS control system
Machine name: Distributed cascade energy storage system
Subsystem name: DC bus cabinet
Machine name: Container type energy storage system
Subsystem name: BMS control system
Machine name: Container type energy storage system
Subsystem name: BMS control system
Machine name: substation UPS system
Subsystem name: BMS control system
Machine name: Home energy storage system
Subsystem name: BMS control system
